Routing & Direction

Routing, direction, navigation, isochrones and many more

Routing Engine

3 different Routing Engine solution


LocusQ offers three different routing solutions for different purposes and different abilities. We recommend using anyone from these three routing engines based on the use cases

Routing Engine
(OSRM)

Route Direction Engine
(Valhalla)

Route Direction and Transit Engine (Graphhopper)

Routing Engine

Routing Engine


This routing engine is based on OSRM and it is a powerful routing engine that offers basic routing to complex travelling sales person (TSP) solution to isochrones but for the turn by turn direction that is used for navigation depends on another tool called OSRM turn by turn direction which can be used in the front end. Besides this, it can perform a heavy-duty routing.

For more documentation and endpoints go to Documentation and Endpoint pages of OSRM Routing

Alternative Text
ENDPOINTS

Discover all the Routing APIs and Endpoints


Routing Engine Endpoints

1. Simple Routing API
- {domain:port}/route/v1/driving/{{from_lon}},{{from_lat}};{{to_lon}},{{to_lat}}?alternatives=true&steps=true&annotations=true&geometries=polyline&overview=full
- Simple Routing API Test

2. Nearest POI API
- {domain:port}/nearest/v1/driving/{{lu_lon}},{{lu_lat}}?number=3&bearings=0,20
- Nearest POI API Test

3. Routing Table API
- {domain:port}/table/v1/driving/{{from_lon}},{{from_lat}};{{lon}},{{lat}};{{to_lon}},{{to_lat}}number=3&bearings=0,20
- Routing table API Test

4. Map Matching API
- {domain:port}/match/v1/driving/{{gps_coordinates}}?steps=true&geometries=polyline&overview=full&annotations=true

5. Nearest POI API
- {domain:port}/trip/v1/driving/{{coordinates}}?steps=true&geometries=polyline&overview=full&annotations=true
- Trip API Test

TEST ALL ROUTING API...

Alternative Text

Stand-alone Routing Engine

LocusQ Master stack covers all the segments of web GIS such as maps, routing, direction, transit, geocoding and many more APIs. Besides this, Routing Engine can be installed as a stand-alone service if anyone does not need few other services or only 2-3 services. Hee is the steps

Alternative Text
  1. 1
    Change the conf.yml file

    Change the configuration file according to your needs. Country-wise configuration code can be found here

  2. 2
    Run the standalone Routing Engine Docker

    Pull or run directly the Routing Engine docker image keeping the conf.yml file in the same directory from where the docker is running
    docker run -it --name routing-engine --network locusq -v $(pwd):/data -p 4704:5000 locusq/routing-engine:latest

  3. 3
    Get the APIs

    Wait a few minutes and check the status of service readiness with the following command
    docker exec -it routing-engine status
    When the service is ready, to get the APIs visit the Routing API endpoints.

Test the Routing Engine Endpoints live

Test API

Routing Engine

Routing and Direction Engine


This routing engine is based on Valhalla and offers almost a complete package for Routing except for its GTFS data dependency on TransitLand. Besides the transit solution, it offers a powerful and comprehensive solution for routing with turn-by-turn direction built in the API which is also ready to use speech declaration for navigation. It also provides TSP solution, isochrone, routing matrix etc.

For more documentation and endpoints go to Documentation and Endpoint pages of Valhalla Routing

Alternative Text
ENDPOINTS

Discover all the Route Direction APIs and Endpoints

Routing & Direction Engine Endpoints

1. Simple Routing with direction API
- {domain:port}/route?json={"locations":[{"lat":{{from_lat}},"lon":{{from_lon}}},{"lat":{{to_lat}},"lon":{{lto_lon}}}],"costing":"auto","units":"km"}
- Simple Routing with Direction API Test

2. Optimized Route API
- {domain:port}/optimized_route?json={"locations":[{"lat":{{from_lat}},"lon":{{from_lon}}},{"lat":{{via_lat}},"lon":{{via_lon}}},{"lat":{{lto_lat}},"lon":{{to_lon}}}],"costing":"auto","units":"km"}
- Optimized API Test

3. Sources to Targets API
- {domain:port}/sources_to_targets?json={"sources":[{"lat":{{source_lat}},"lon":{{source_lon}}}],"targets":[{"lat":{{target_1_lat}},"lon":{{target_1_lon}}},{"lat":{{target_2_lat}},"lon":{{target_2_lon}}}],"costing":"auto","units":"km"}
- Sources to Targets API Test

4. Isochrone API
- {domain:port}/isochrone?json={"locations":[{"lat":{{lat}},"lon":{{lon}}}],"costing":"auto","contours":[{"time":5,"color":"123456"},{"time":10,"color":"345216"},{"time":15,"color":"ff0000"}],"polygons":"true"}
- Isochrone API Test

5. Locate API
- {domain:port}/locate?json={"verbose":true,"locations":[{"lat":{{lat}},"lon":{{lon}}},{"lat":{{lat}},"lon":{{lon}}},{"lat":{{lat}},"lon":{{lon}}}],"costing":"bicycle","costing_options":{"bicycle":{"bicycle_type":"road"}},"directions_options":{"units":"miles"},"id":"12abc3afe23984fe"}
- Locate API Test

TEST ALL ROUTE DIRECTION API...

Alternative Text

Stand-alone Routing & Direction Engine

LocusQ Master stack covers all the segments of web GIS such as maps, routing, direction, transit, geocoding and many more APIs. Besides this, Routing and Direction Engine can be installed as a stand-alone service if anyone does not need few other services or only 2-3 services. Hee is the steps

Alternative Text
  1. 1
    Change the conf.yml file

    Change the configuration file according to your needs. Country-wise configuration code can be found here

  2. 2
    Run the standalone Routing & Direction Engine Docker

    Pull or run directly the Routing & Direction Engine docker image keeping the conf.yml file in the same directory from where the docker is running
    docker run -it --name routing-direction-engine --network locusq -v $(pwd):/data -p 4705:8002 locusq/routing-direction-engine:latest

  3. 3
    Get the APIs

    Wait a few minutes and check the status of service readiness with the following command
    docker exec -it routing-direction-engine status
    When the service is ready, to get the APIs visit the Geocoding API endpoints.

Test the Routing & Direction Endpoints live

API test

Routing Engine

Routing & Transit (Multimodal) Engine


This routing enge is based on Graphhopper and it is a full package of Routing services with a blazing-fast response with transit or multimodal routing. It can even use custom GTFS format data for multimodal routing. TRansit/GTFS data can be found in OpenMobilityData of Transitfeed.com.

For more documentation and endpoints go to Documentation and Endpoint pages of Graphhopper Routing

Alternative Text
ENDPOINTS

Discover all the Transit or Multimodal Routing APIs and Endpoints

Routing & Transit Engine Endpoints

1. Simple Routing API
- {domain:port}/route?point={{from_lat}},{{from_lon}}&point={{to_lat}},{{to_lon}}&vehicle=car&points_encoded=true&debug=true&details=average_speed&details=time&instructions=true&weighting=fastest&ch.disable=true
- Simple Routing API Test

2. Optimized Routing API
- {domain:port}/vrp?point={{from_lat}},{{from_lon}}&point={{via_lat}},{{via_lon}}int={{to_lat}},{{to_lon}}&vehicles=car&points_encoded=true&debug=true&details=average_speed&details=time&instructions=true
- Optimized Routing API Test

3. Isochrone API
- {domain:port}/isochrone?point={{lat}},{{lon}}&time_limit=600&vehicle=car&buckets=3&reverse_flow=false
- Isochrone API Test

4. Route Matrix API
- {domain:port}/vrp?point={{from_lat}},{{from_lon}}&point={{via_lat}},{{via_lon}}&point={{to_lat}},{{to_lon}}&vehicles=car&points_encoded=true&debug=true&details=average_speed&details=time&instructions=true

TEST ALL ROUTE TRANSIT API...

Alternative Text

Stand-alone Geocoding Engine

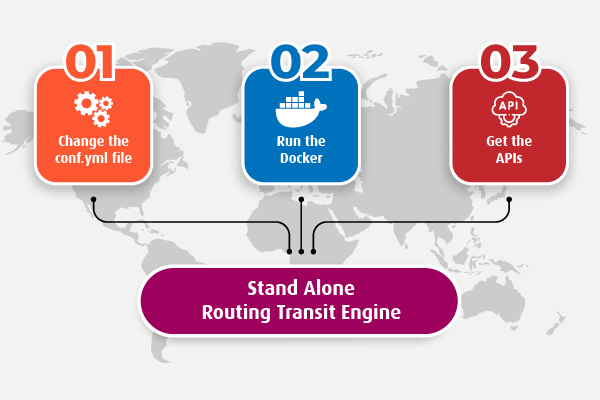

LocusQ Master stack covers all the segments of web GIS such as maps, routing, direction, transit, geocoding and many more APIs. Besides this, Geocoding Engine can be installed as a stand-alone service if anyone does not need few other services or only 2-3 services. Hee is the steps

Alternative Text
  1. 1
    Change the conf.yml file

    Change the configuration file according to your needs. Country-wise configuration code can be found here

  2. 2
    Run the standalone Geocoding Engine Docker

    Pull or run directly the Routing & Transit Engine docker image keeping the conf.yml file in the same directory from where the docker is running
    docker run -it --name routing-transit-engine --network locusq -v $(pwd):/data -p 4706:8989 locusq/routing-transit-engine:latest

  3. 3
    Get the APIs

    Wait a few minutes and check the status of service readiness with the following command
    docker exec -it routing-transit-engine status
    When the service is ready, to get the APIs visit the Geocoding API endpoints.

Test the Routing & Transit engine Endpoints live!!!

Test API
